Used 2019 KZ Venom V4114TK

Toy Hauler Fifth Wheel

Stock #TN797

Creswell, OR

AMAZING LAYOUT! READY FOR ADVENTURE!

1 of 45

+45

Specifications

Sleeps	8	Slides	3
Length	43 ft 4 in	Ext Width	8 ft 5 in
Ext Height	13 ft 4 in	Int Height	8 ft 6 in
Interior Color	Slate, Cascade	Hitch Weight	3130 lbs
GVWR	19000 lbs	Dry Weight	14400 lbs
Cargo Capacity	4600 lbs	Fresh Water Capacity	112 gals
Grey Water Capacity	93 gals	Black Water Capacity	53 gals
Tire Size	16"	Furnace BTU	35000 btu
Fuel Capacity	70 gals	Number Of Bunks	1
Available Beds	King	Refrigerator Size	18 cu ft
Convection Cooking	Yes	Cooktop Burners	3
Number of Awnings	2	Axle Weight	11270 lbs
Garage Size	13 ft 10 in	LP Tank Capacity	30 lbs
Water Heater Capacity	12 gal	Water Heater Type	Gas/Electric w/DSI
AC BTU	45000 btu	TV Info	Garage 32" LED, LR LED, BR 32" LED
Awning Info	15' & 15' Option Power w/LED Light Strip	Axle Count	3
Washer/Dryer Available	Yes	Number of LP Tanks	2
Shower Type	Shower w/Seat	Electrical Service	50 amp

Features

Standard Features (2019)

Construction

101" Wide Body Construction
6-Sided aluminum frame, including welded aluminum fore & aft floor joists, sidewall framing, & roof trusses
Extra Reinforced Heavy-Duty Front Fiberglass Cap
Radius Aerodynamic Front Cap
2" x 3" Fully-Welded Aluminum Floor Framing
2" x 2" Fully-Welded Aluminum Sidewall Framing
5" Welded Aluminum Roof Trusses
Lippert® Hydraulic Slide System w/Selector Valves
12" Powder-Coated Steel I-Beam w/Drop Frame (160 SQ FT Pass-Thru Storage)
Lamilux 4,000® High-Gloss Fiberglass Sidewalls
All Weather Insulation Package to R38 (roof, floor, garage floor end caps, holding tanks)
Double Insulated & Heated Holding Tanks (R38 above & below tanks)
Additional Outside Frame-to-Wall Floor Insulation
R11 2" Sidewalls (w/EGS metal backing strips)
One-Piece ABS Slideroom Bottoms
Roof Membrane (TPO/Rubber Hybrid, limited 12-year warranty)
45-Degree Radius Aluminum Roof Edge
Fully Vented Attic System
3/8" Fully Walk-On Roof Decking
5/8" Tongue & Groove Screwed & Glued Plywood Floor Decking
Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drains located above all insulation)
Fully-Enclosed & Heated Underbelly w/Direct-Heated Holding Tanks

Exterior

7,000 LB Dexter® Axles w/Self Adjusting Brakes & Height Adjusting Hangers
8-Lug Heavy-Duty Aluminum Rims w/16" G-Range Radial Tires
100% Exterior LED Running & Taillights
Propane Bottles (2 x 30 LBS) on Same Side for Easy Access
Sealed Battery Storage Compartment (no battery boxes required)
Triple Front Slam-Latch Baggage Doors
Side Slam-Latch Baggage Doors w/Gas Struts & Dual Locks
Fully Painted Front Cap w/LED Accent Lights
Frameless Windows
35,000 BTU Furnace w/3" x 14" In-Floor Straight Line Heating System
12 GAL Gas/Electric Hot Water Heater
Ramp Door w/LED Lighting
LED Docking & Sewer Hookup Lights
Sewer Hose Storage Tube
Dual Swing-Away Assist Grab Handle
Under-Frame Spare Tire w/Hoist
Roof Ladder
Heated Water Convenience Center (incl. black tank flush, power fresh tank water fill, winterizing system, outside shower, & dry-camping water siphon)
Fully-Finished Heated & Sealed Basement Storage Compartment
Camp Table & Patio Chairs Storage Compartment
Heated & Enclosed Dump Valves
Satellite Pre-Wire in Convenience Center & Roof
LP Quick Connect

Kitchen

Large Dining Table w/Removable Leaf & 2 Heavy-Duty Chairs (2 additional folding chairs V3911TK, V4114TK)
Power Vent Kitchen Fan w/Wall Controls
XL Residential Size Pullout Trashcan (where applicable)
Removable Silverware Tray
Under-Sink Storage Shelf
OH Cabinets incl. Shelf & Extra-Tall Slide Lips
Hidden Cabinet Door Hinges
5" Stainless Steel Cabinet Hardware
Baltic Birch Drawer Boxes
Heavy-Duty 100 LB Drawer Glides
LED Kitchen Cabinet Toe-Kicks (where applicable)
Kitchen Window (most models)

Interior

22 OZ Residential Carpet w/3/8" Re-bond Padding
XL Ceiling Crown Molding
100% LED Ceiling & Cabinet Lights w/Multiple On/Off Switches
Extra-Large Light Switches
Removable Pedestal Tables in Front of Seating (based on model)

Bedroom

XL Deep Closet w/Shoe Storage Rack (V3911TK, V4013TK)
Dual Washer/Dryer Prep (stacked or side-by-side)
XL Under-Bed Storage
Luxurious Bedspread & Pillow Shams
Flat Panel TV on Swing Arm

Bath

Residential One-Piece FG Shower Stall w/Glass Doors & Built-In Seat
Shower Skylight
XL Solid Surface Bath Vanity w/Stainless Steel Sink
Porcelain Foot-Flush Toilet
XL Linen Cabinet
XL Deep Closet w/Shoe Storage Rack (V3911TK & V4013TK)
Extra-Wide Hallway & Pocket Door
Power Vent w/Wall Switch
Towel Bar & Towel Ring

Garage

Roll-Down Screen Wall
E-Track Tie-Down System
Built-In Dovetail
24" Diamond Plate Wall Guards
Garage Entry Door
HD Flat Panel Garage TV on Swing Arm
(2) Garage Ceiling Speakers
Zero Gravity Ramp Door with Easy Lift Assist

Options

Exterior

Dual Pane Windows (frameless)
Wireless Backup Camera System - Observation
“Off the Grid” Solar Package*
Flex-Air Pin Box
2nd LED Lighted Power Awning
Slideout Cover Package (triple slides)
Ramp Door Patio Package w/Step & Awning
Three Season Patio Door IPO Screen Wall
5.5KW Gas Onan Generator

Interior

Theater Seating w/Heat & Massage Features & 2-Person Table & Chairs IPO Super Sofa (V4013TK)
Residential Refrigerator w/1200W Inverter (18 CU FT) IPO 12 CU FT Gas/Electric Refrigerator (N/A CSA option)
Power Vent Fan in Bathroom
Power Vent Fan in 1/2 Bath
Denver Trek Queen Pillowtop Mattress 60" x 80"
Happi-Jac Power Bed w/Roll Over Sofas & Table
*Cannot get Residential Refrigerator w/“Off the Grid” Solar Package

KZ Advantage Package (mandatory option)

Exterior

6-Point Hydraulic Auto Leveling
Polar White High Gloss Gelcoat Exterior Fiberglass
Painted Fiberglass Front Cap
6-Sided Aluminum Framing
Flip-Up Entry Steps (main entry)
50 AMP Service
(3) 15K Ducted A/Cs w/Load Management System
5/8" T&G Plywood Floor
Key-Alike for Baggage & Entry Doors
Friction Hinge Entry Door
Shade Prep & Screenshot Feature on Entry Door
Large Folding Grab Handle
Undermount Spare Tire
Trail-Air Rota Flex Pin Box
Equa-Flex® Suspension
Nitrogen-Filled Tires
Battery Disconnect
Black Tank Flush
Backup Camera Prep
Roof Mounted Solar Prep
All Weather Insulation Package (heated, insulated & enclosed underbelly plus foil in floor, roof, front, rear)
Roof Ladder
Fully Vented Attic System w/2 Attic Vents
Toy Lok®
Generator Prep w/Dedicated 30 Gal. Fuel Tank Plus 40 Gal. Fuel Tank & Pump Station
Retractable Screen Wall

Interior

Maple Glazed Cabinetry
Glazed Solid Hardwood Slideout Fascia
Solid Surface Countertops w/Deep Undermount Stainless Steel Kitchen Sink w/Sink Cover
Chef’s Appliance Package (2-piece SS gas cooktop w/built-in oven & 30" convection microwave)
Central Vac System w/Attachments
Power Vent Fan in Main Area
Super Sofa (select models)
(3) Motion Sensor Lights (entry, closet, basement)
40" Wideview Fireplace
LED TV
Multiple Media Stereo w/DVD/Bluetooth
JBL Performance Package (6 JBL speakers & sub)
12V Dual USB Charging Station
Dual Day/Night Roller Shades
Porcelain Foot-Flush Toilet
Stainless Steel Oval Bathroom Sink
Plywood Bed Base
Denver Trek King Pillowtop Mattress 72" x 80"
32" Bedroom LED TV
12 GAL Gas/Electric Water Heater
32" LED TV in Garage Area

KZ Convenience Package (mandatory option)

Exterior

7" MyRV® One Touch Control Panel (monitors tank levels & battery levels, controls slide rooms, leveling system, awnings, inside/outside lighting)
Power Awning w/LED Light Strip
16" G-Range Tires w/Aluminum Wheels
Magnetic Catches for Baggage Doors
Directional HDTV Antenna
LED Lights in Exterior Speakers

Interior

Residential Grade Linoleum
18 CU FT Gas/Electric Refrigerator w/Temperature Controls
Stainless Steel Residential Kitchen Faucet w/Pulldown Sprayer
Surfex Wood Step in FW Hallway
Dark Accent Trim on Corners/Entry Doors

See us for a complete list of features, available options and warranty info!

All features and specifications are subject to change.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Sales Team is Great
The sales team was great to work with and helped me find the best RV for my budget.

John
repairs on our 5th Wheel
TJ was very friendly and helpful. Every repair was completed and explained to us. Work was done in a timely manner. Much appreciated!
It was a pleasure working with TJ

Jeanne from Springfield, OR

We are here to help, call us at
541-895-3599 or Contact Us

We are here to help!

541-895-3599
Contact Us
Contact Sales

Oregon West RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @541-895-3599 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2019 KZ Venom V4114TK

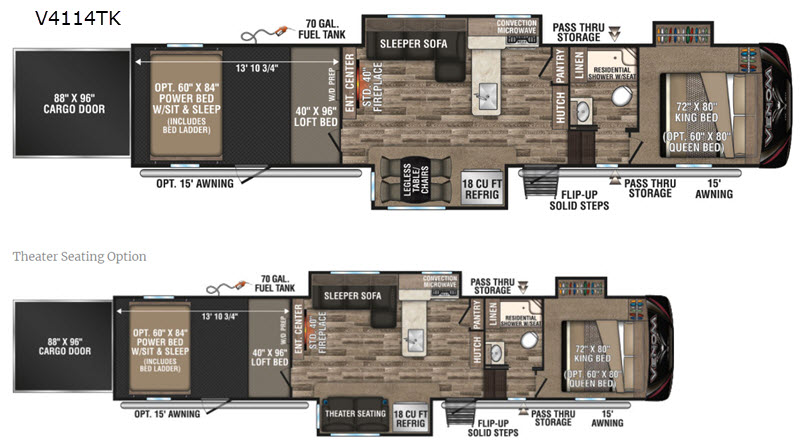

V4114TK Floorplan
